Product Information
It is normal that the rotor of the motor cannot be turned by hand, and it needs to be driven by a single-chip microcomputer. Please know
【Length】: 25mm
[Diameter]: 21mm
[Shaft diameter]: 2mm
[Shaft length]: 9mm
【Voltage】:3-6V
[Current]: 0.35-0.4A (reference)
[Note]: The motor does not generate electricity by itself and needs to be driven by a battery
The speed of 3V is about 15000 rpm
Product use
The pin welding wire leads to the power supply, regardless of the positive and negative poles, it supports forward and reverse rotation. If the direction of the connection is not the direction you want, just swap the place where the power supply wire is welded.
Inspection content
Test environment temperature: 20°C~35°C
Humidity: 65%±5‰RH
Rated test voltage: 3VDC
No-load current: ≤0.55A (maX)
No-load speed: 24000±-10%rpm
Performance test locked-rotor current: voltage between terminals: 3≥3A
Rotation direction: CCW (motor output shaft)
Abnormal sound: no abnormal sound when the motor is running without load

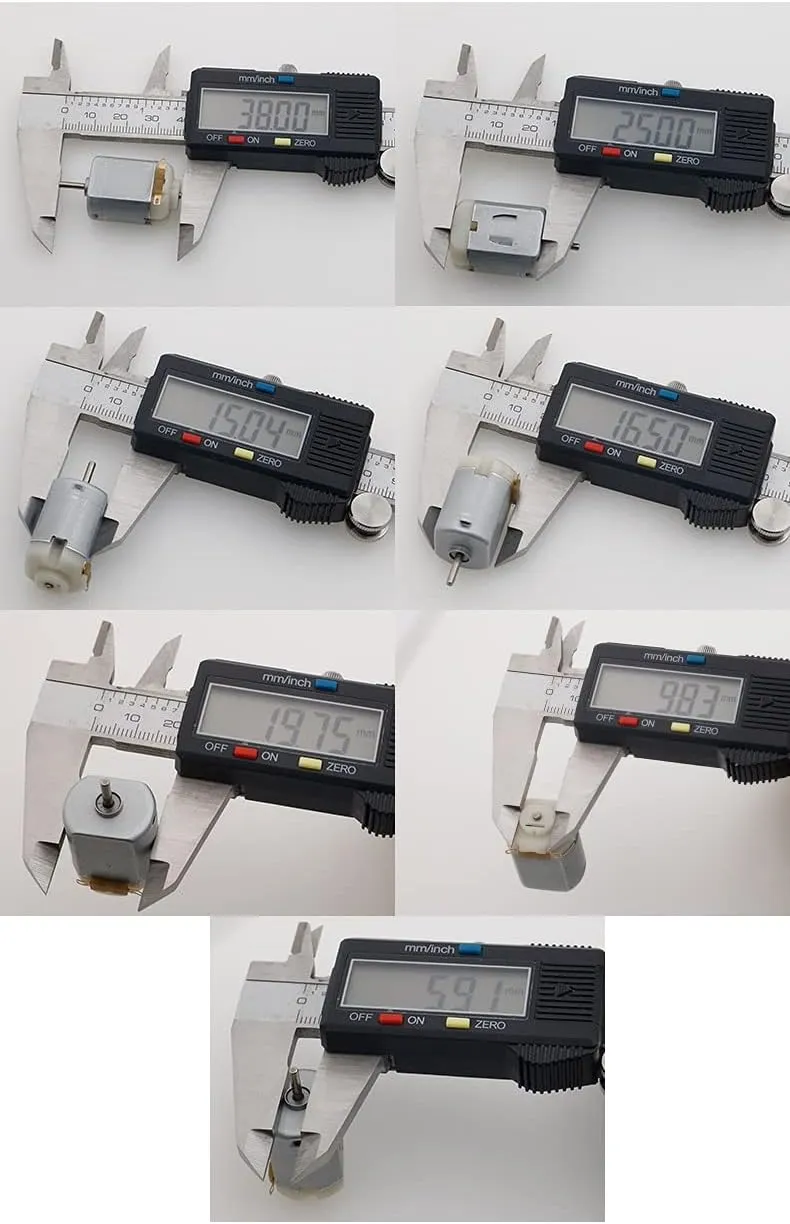

The appearance and installation dimensions meet the requirements of the drawings (see the above figure)
Shaft bending: ≤0.02mm
Output shaft size: 8mm±02mm
Virtual position: 0.05-0.5mm
Item specifics:
Torque: Micro Motor
Usage: BoAt,car,Electric Bicycle,Fan,Home Appliance
Model number: TSE01001
Output power: Micro Motor
Continuous current(a): 0.35-0.4A
Protect feature: Drip-proof
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: ce
Origin: Mainland China
Item type: Micro Motor
Product feature: High Quality Micro Motor
Key word: New Micro Motor
: Support
