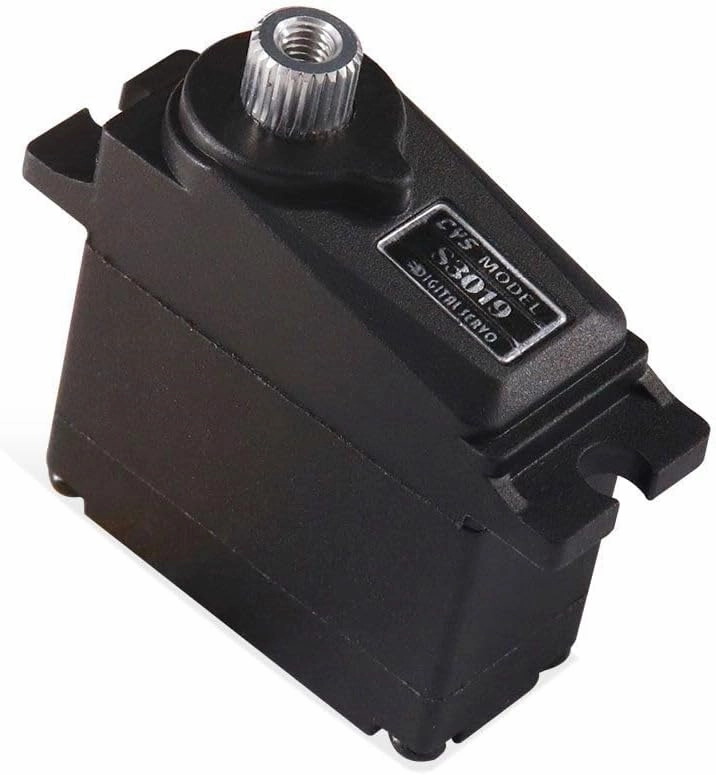

CYS S3019MG 17g Metal Gear Digital Servo
Made By: CYS MODEL
Item No.: CYS-S3019M
Model: S3019MG
Q'TY: 1piece /bag
17g Metal Gear Digital Servo
Weight: 23( /-1)g
Size: 37.6*13.3*33.8mm
Control System: ( )Pulse Width Control 1500usec Neutral
Operating Voltage: 4.8-6.0V
Operating Temperature Range: -10 to 50 Celcius degree
Operating Speed at no load:
(4.8V) 0.13sec/60 degree
(6.0V) 0.09sec/60 degree
Stall Torque:
(4.8V) 2.5kg.cm
(6.0V) 3.0kg.cm
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000-2000usec
Current Drain:
(4.8V idle /no-load) 20mA/80mA
(6.0V idle /no-load) 20mA/80mA
Stall Current: 1.2A/1.5A
Dead Band Width: 3usec
Motor Type: Iron core
Bearing Type: None
Horn gear spline: 25T
Gear Type: Metal
JR plug wire length: 180mm
Wire info:
Brown/Black = Negative
Red = Positive
Orange/White = Signal

Important Notes:
01. JR plug & 18cm connector wire.
02. Refer to the figure when installing the servo accessories.
03. For engine powered airplanes and boats, rubber must be used to reduce vibration.
04. Please choose correct model for your application.
05. Torque over-loaded will damage the servo's mechanism.
06. Keep the servo clean and away from dust, corrosive gas and humid air.
