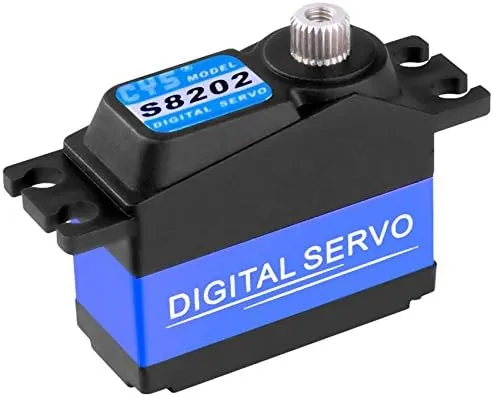

CYS-S8202 Metal Gear 2.5kg Digital Servo for 500 Helicopter
Brand: CYS MODEL
Item No.: CYS-S8202

2.5kg Digital Servo Metal Gear
Size: 35*15*30mm
Weight: 25g (0.88 oz)
Wire Length: 25cm
Voltage: 4.8-6.0V
Control System Required Pulse: ( )Pulse Width Control 1500usec Neutral
Operating Voltage 4.8-6.0V
Operating Temperature Range: -20 to 60 Celcius degree
Operating Speed at no load:
(4.8V) 0.12sec/60 degree
(6.0V) 0.10sec/60 degree
Stall Torque:
(4.8V) 2.2kg.cm (30.56 oz/in)
(6.0V) 2.5kg.cm (34.73 oz/in)
Operating Angle: 45deg.one side pulse traveling 500 usec
360 Modifiable: No
Direction: Anticlockwise/Pulse Traveling 1000-2000usec
Current Drain:
(4.8V) 20mA/idle and 120mA no load operating
(5.0V) 20mA/idle and 150mA no load operating
Stall Current: 800mA/900mA
Dead Band Width: 2usec
Motor Type: 3 Pole Ferrite Drive
Bearing Type: Dual Ball Bearing
Horn gear spline: 25T
Gear Type: Metal
Connector Wire Length: 250mm
Wire info:
Brown/Black = Negative
Red = Positive
Orange/White = Signal

Apply To:
450 /500 RC helicopter

Important Notes:
01. JR plug 25cm wire.
02. Refer to the figure when installing the servo accessories.
03. For engine powered airplanes and boats, rubber must be used to reduce vibration.
04. Please choose correct model for your application.
05. Torque over-loaded will damage the servo's mechanism.
06. Keep the servo clean and away from dust, corrosive gas and humid air.
