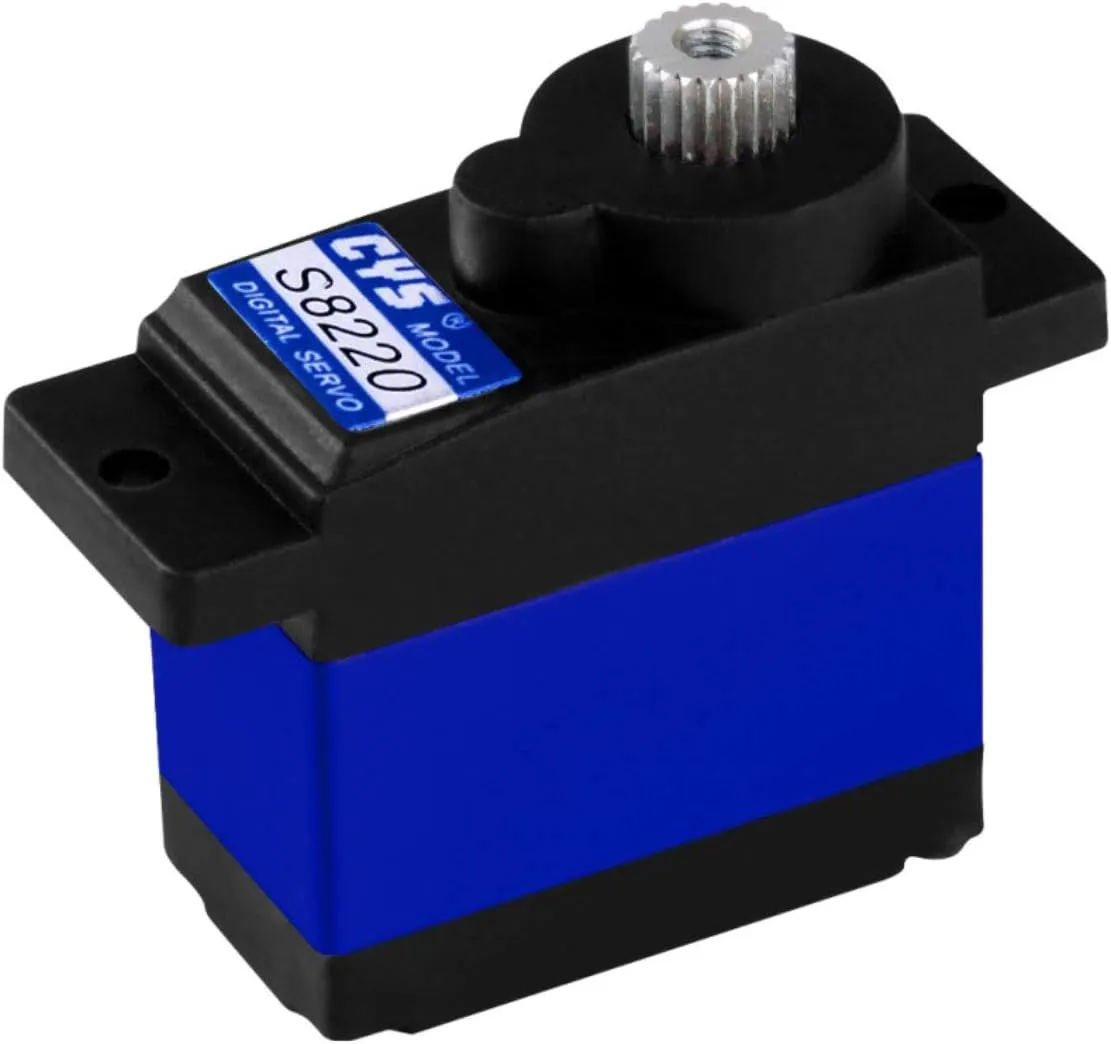

CYS-S8220 Digital 1.5kg Servo Metal Gear for 450 & 500 Helicopter
Made By: CYS MODEL
Item No.: CYS-S8220

Digital servo & Metal gear
Size: 22.9*12*25.4mm
Weight: 13g (0.46 oz)
JR plug wire: 18cm
Voltage: 4.8-6.0V
Speed:
0.12sec/60 degree -(4.8V)
0.10sec/60 degree -(6.0V)
Torque:
1.2kg.cm (16.67 oz/in) -(4.8V)
1.5kg.cm (20.84 oz/in) -(6.0V)
Q'TY: 1P

Important Notes:
01. JR plug, 18cm wire length.
02. Refer to the figure when installing the servo accessories.
03. For engine powered airplanes and boats, rubber must be used to reduce vibration.
04. Please choose correct model for your application.
05. Torque over-loaded will damage the servo's mechanism.
06. Keep the servo clean and away from dust, corrosive gas and humid air.
