- ESP32-GEEK Development Board, Based On ESP32-S3R2 Controller Chip, With 1.14inch 65K Color LCD, Supports W-i-F-i & Blue-too-th LE, USB-A Male Port, With White Plastic Case
- Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory
- Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
- Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port
- Integrated 2.4GHz W-i-F-i and Blue-too-th LE wire-less communication
Board Specifications

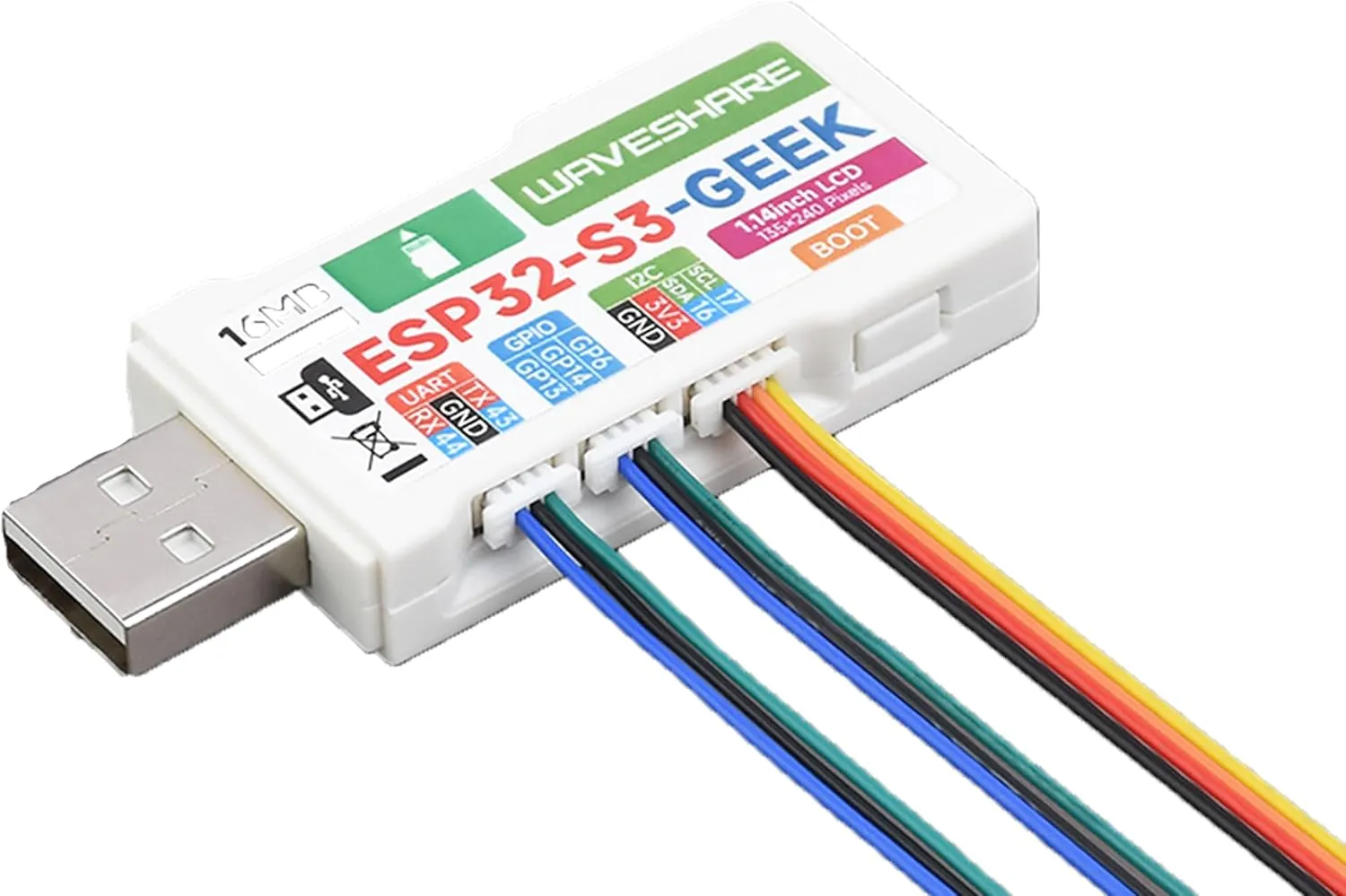

ESP32-S3-GEEK is a geek development board, onboard USB-A port, 1.14inch LCD screen, TF card slot, and other peripherals. Supports 2.4GHz W-i-Fi- and BLE 5, with integrated 16MB Flash & 2MB PSRAM, provides I2C port, UART port, and GPIO header, bringing more possibilities for your project.
Key features include:
- Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Built in 512KB SRAM, 384KB ROM, 2MB of on-chip PSRAM, and onboard 16MB Flash memory
- Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
- Integrated 2.4GHz W-i-F-i and Blue-too-th LE wire-less communication:
2. WiFi supports 1T1R mode with data rate up to 150 Mbps
3. Bluetooth supports high power mode (20dBm)
4. Internal co-existence mechanism between Wi-Fi and Bluetooth to share the same antenna
- Onboard 3PIN UART port, 3PIN GPIO header and 4PIN I2C port
- Equipped with plastic case and cables
Application Example:
Suitable for creative applications such as wireless USB flash drives, USB W-i-F-i/Blue-too-th, USB Dongle based on ESP32-S3, as well as for Introductory Programming Learning, etc.
Package Content
ESP32-S3-GEEK and cables x1
