- Smart charging features include protection against a short circuit, over current and more
- Simple, one-touch dial interface makes operation easy, and four individual multi-color LEDs instantly display battery current, capacity and voltage
- Independent circuits charge up to four 1S LiPo batteries simultaneously and individually
- Charge flexibility with adjustable charge currents from 0.05 to 1.2A
- Four connector types on each port (Molex, JST,UM and PH) - plus convenient AC and DC input (11 - 15V DC)
The Ultimate Charging Solution.

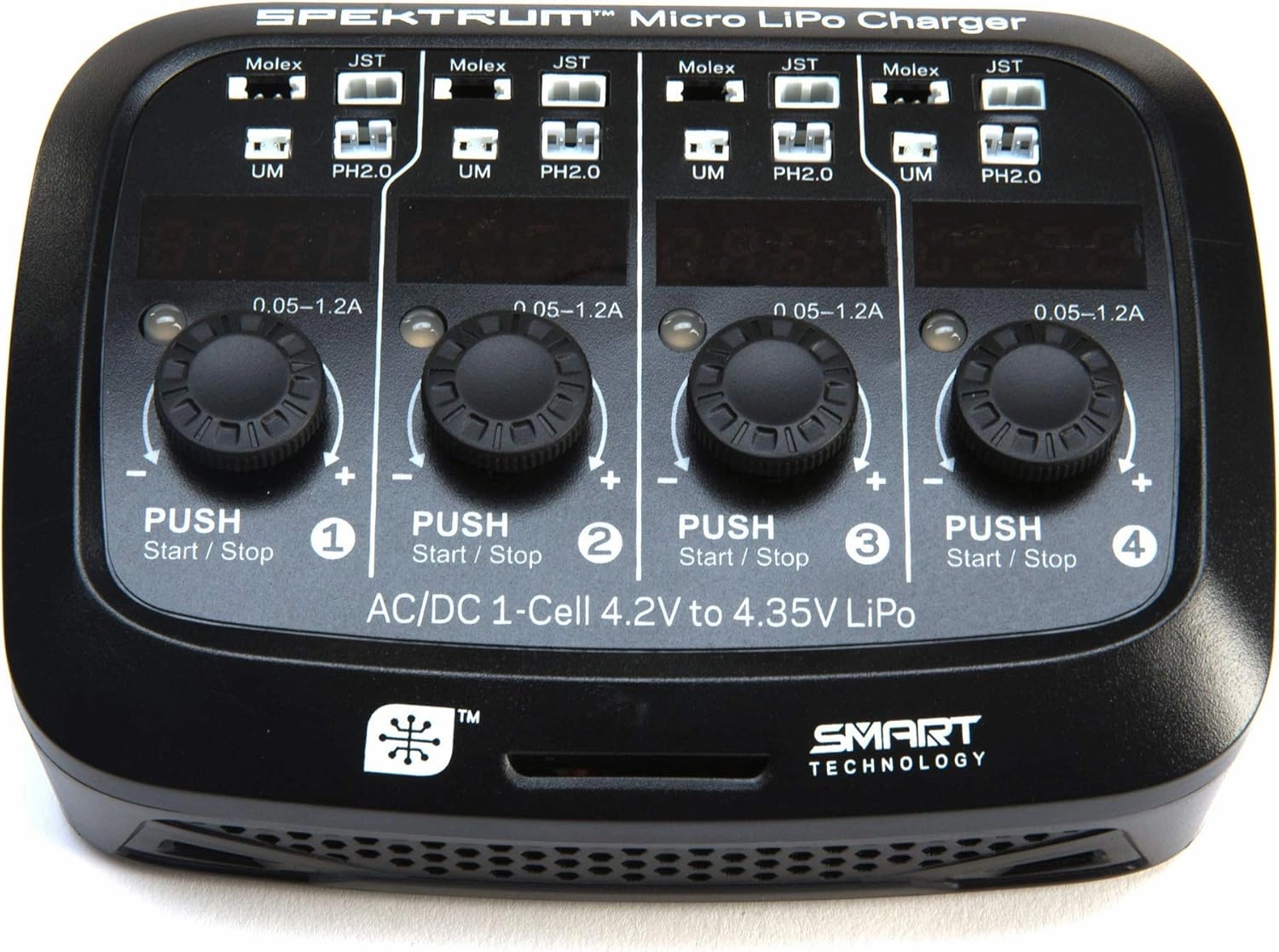

The Spektrum Micro 4 charger is a 4-port tool for the RC pilot who wants the ultimate in 1S LiPo battery charging. Featuring Spektrum Smart Charging technology, its digital LED status screen delivers vital battery information in a clear manner the instant you connect. Its compact all-in-one design incredibly offers four independent charging channels, each with enough built-in connectors so that charging multiple 1S batteries with the highest level of precision is easy.
Independent circuitry for each charging channel enhances charge precision and efficiency. Vivid LED status lighting includes individual 4-digit displays and multi-color LEDs so you can instantly see the charge phase and battery condition. The simple press-dial interface allows you to finely tune the charge rates from 0.05 to 1.2A making it possible to fast-charge most high rated batteries. Exclusive software detects LiPo and LiHV 1S batteries automatically and combines with Spektrum Smart Charging technology so your batteries get maximum protection against short circuit, over current, reverse polarity and input voltage errors.
The Micro 4 AC/DC system works when connected to a standard wall outlet or you can even take the Micro 4 charger on the go. Because it will accept power input sources as low as 5V, any standard USB power source can be used such as a laptop or similar. Unlike charging multiple 1S batteries in parallel, each battery is individually recognized. As a result, you can charge individual 1S batteries with the precision of much more expensive charge units and possibly extend the life of all of your 1S batteries.
Key Features:
- Smart charging features include protection against a short circuit, over current and more
- Simple, one-touch command dial interface makes operation easy
- Four independent ports for the ultimate in charge precision
- Individual LED displays show battery current, capacity and voltage
- Versatile design includes four connector types built into each charge port
- Independent charging circuits for improved speed and efficiency
- Charge flexibility with adjustable charge currents from 0.05 to 1.2A
- Integrated cooling system promotes unit reliability
- Visual and audio charge status indicator system
- Convenient AC and DC input (11-15V DC)
Includes:
- Spektrum Micro 4-Port AC/DC 1S LiPo Charger with Cooling Fan (SPMXC1040)
- AC Power Cord
Specifications:
- Ampere Meter: Yes - on main LCD display
- Battery Type: 1S LiPo
- Display: 4-digit LED
- Height: 2.0 in (51 mm)
- Input Voltage: 100-240 Volts AC; 11-15 Volts DC
- Length: 5.2 in (132 mm)
- Maximum Charge Rate: 1.0 A
- Output Connector: Molex / JST / UM / PH
- Selectable Charge Rate: Yes - Incremental (0.1A Increments)
- Voltage Meter: Yes - on main LCD display
- Weight: 10 oz (283 g)
- Width: 3.9 in (99 mm)
