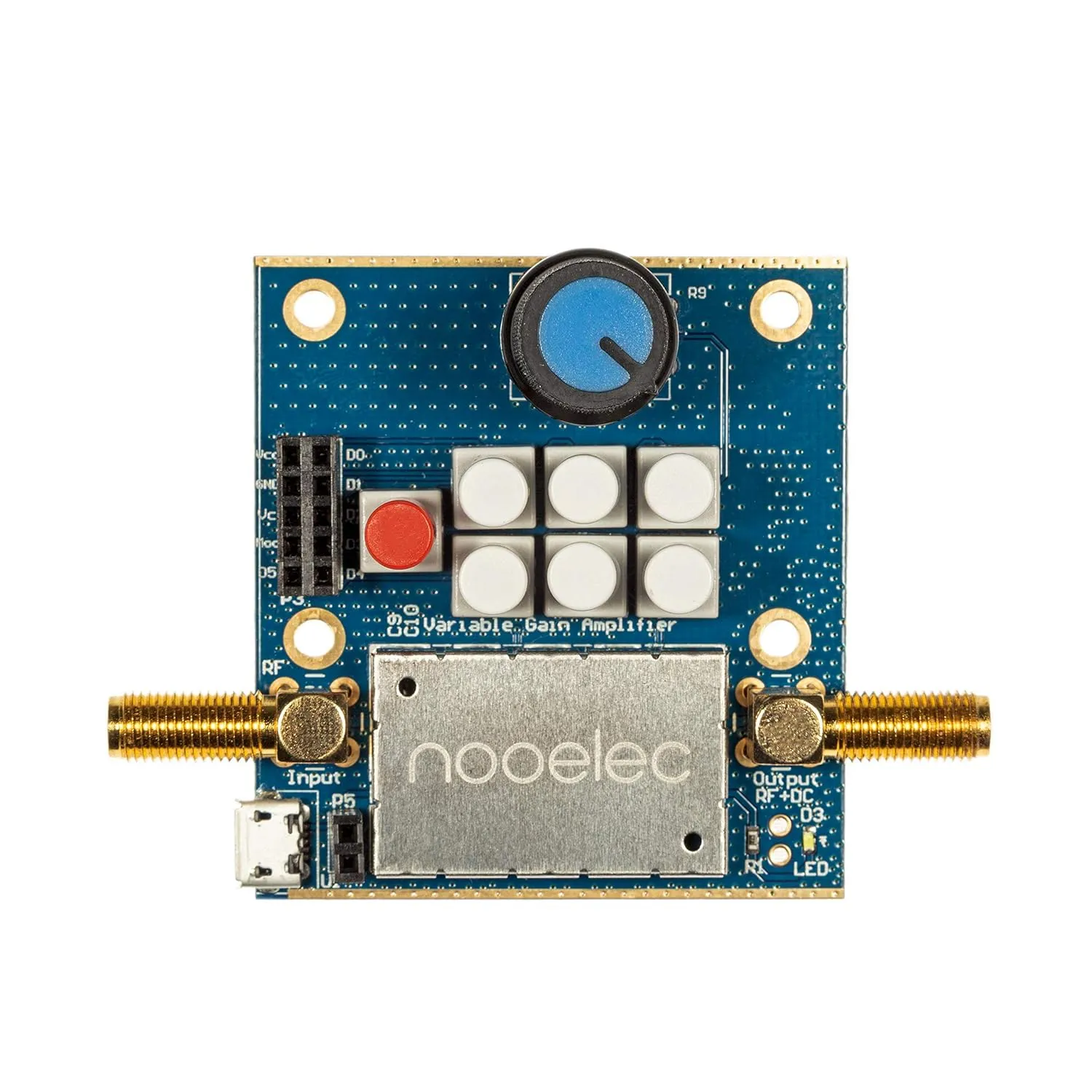

- A wideband (30MHz-4000MHz), high-performance, general purpose LNA module with a built-in variable attenuator to maximize usability and portability
- The attenuation can be controlled either with the on-board potentiometer (analog control) or push button array (digital control)
- Dual amplifier design with adjustable gain (20dB-50dB at 100MHz), low noise figure and low power consumption. Can be powered through bias tee (3.3V-5V), USB, or DC power
- Made in North America
FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AND DATASHEET AT NOOELEC.COM
VeGA is a very high performance, LNA module designed for general purpose SDR applications with two options to adjust the gain of the device.
Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 4.5V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector. The recommended external power input is 4.0V-5.5V DC.
Though there is protection circuitry on VeGA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage.
Each VeGA module has an EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
VeGA has an RF limiter at the RF input port to protect the amplifier from very high power input signals.
- Product Dimensions : 2.95 x 2.17 x 0.79 inches; 0.71 ounces
- Date First Available : October 22, 2020
- Manufacturer : Nooelec Inc.
- Country of Origin : USA
